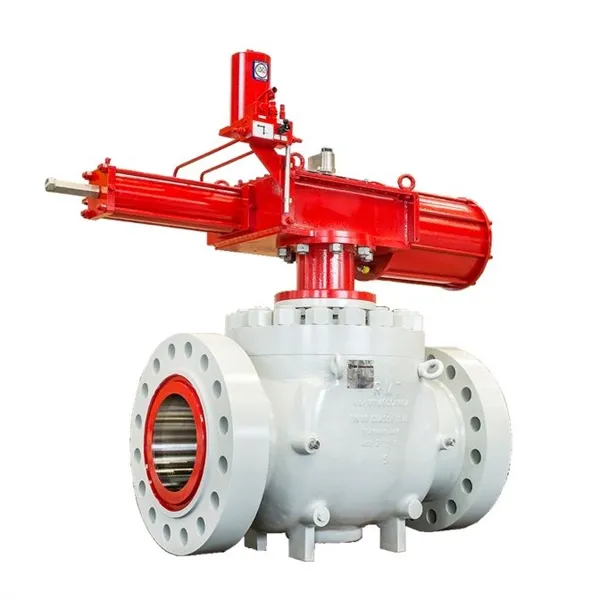

TRUNNION MOUNTED TOP ENTRY BALL VALVE

TRUNNION MOUNTED TOP ENTRY BALL VALVE

STANDARD DESIGN FEATURES

• Size range: 1.1/2” to 60”
• Rating class:
• API 6D: ASME 150-300-600-900-1500-2500 ANSI
• API 6A: API 2000-3000-5000-10000 psi
• Cast / Forged Body & Forged Bonnet
• Soft seated or Metal Seated with Tungsten Carbide Coating or Chrome Carbide Coating
• Internal protection on sealing areas CRA weld overlay or FBE lining
• Self relieving seats or double piston effect seat (DIB-1 or DIB-2)
• Anti blow-out stem - antistatic device
• Fire safe API 6FA - API 607 – ISO 10497
• Designed, manufactured and tested according to API 6D, ASME B 16.34, E.D. 2014/68/EU (PED), EN 12516
• End connections:
• flanged (ASME B16.5 - B16.47)BW (ASME B16.25)Hub
• materials in accordance to NACE MR 01.75
• full in-line maintenance either with vertica
