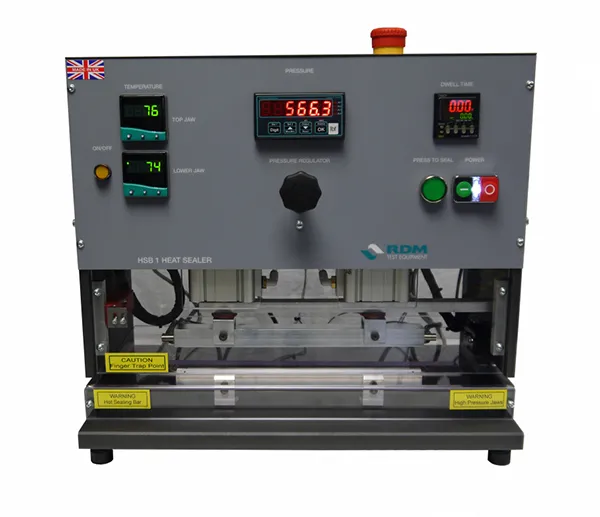

HSB-1 Laboratory Heat Sealer

Laboratory heat sealer for standard determination of heat seal threshold. Produces seals 5-25mm wide and up to 350mm long.

Benefits:

Choose heat sealing bar configuration, either single (upper) or dual (upper & lower, meets ASTM F2029)
User can easily change sealing bar for various surface areas or surface finishes
Accurate and repeatable seals due to precision ground sealing faces and jaw alignment system
Versatile applications for flexible materials, blister packs and pots
Low Maintenance - 12 months between calibrations

Features:

Pressure calibration of standard surface area jaw face
Temperature digital controllers, pressure and dwell time dial controllers (upgrade to precision digital controllers as required)
Jaws constructed in aluminium and silicone with precision ground faces
Range of jaw face surfaces including Matched Crimp and Teflon Coating

Specification

Seal Width	300 mm max. (Option to extend to 350mm)
Temperature Control	Range: Ambient to 300°C, Accuracy: +/- 0.5%, Operating Accuracy: +/-2°C. Single (Upper) sealing jaw temperature control, or Dual (Upper & Lower) sealing jaw temperature control.
Pressure	Range: 0 to 100psi (6.8bar, 689Kpa), via dial pressure gauge, pressure control via precision regulator. Operating Accuracy +/-10%, Repeatability +/- 5psi. Supply via clean and dry compressed airline or bottled air/nitrogen at 90 to 100psi
Dwell Time	Range: 0.1 to 99.9 sec., Resolution 0.01 sec
Jaw Guidance System	Quick release mechanism for simple jaw changeover.
Sealing Jaws	Standard flat jaws 25mm x 300mm, constructed in aluminium with precision ground face. Lower sealing jaw with precision ground silicone rubber face. (See options below)
Environment:	5-50°C ambient operating temperature, RH 75% max (non-condensing)
Power	240V AC 50/60 Hz (110V AC voltage available on request)
Dimensions	W 50 x D 35 x H 47 cm, 27kg

Options

Single (Upper) sealing jaw temperature control or Dual (Upper & Lower) sealing jaw temperature control
Sealing jaw dimension/profile as required (inc. Matched crimp 120° x 1.8mm pitch)
Upgrade to digital pressure transducer/readout, and digital dwell timer.
Stainless Steel sealing jaws
Teflon Coated Tape or Teflon Coated Jaws
Footswitch
PVC Dust Cover
Alarm package for temperature High/Low, selectable
Cold seal system
