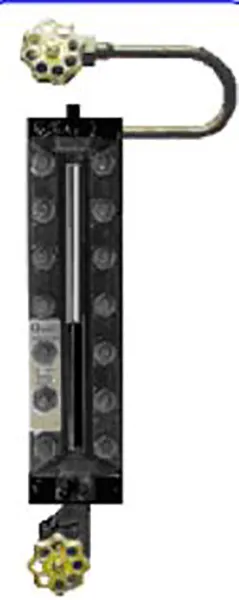

Boiler Gauge 2000 LB

Boiler Gauge 2000 LB

TB-40-FL“Steam Line” Direct Reading Steam/Water Gages

For 2000 PSI (Working Steam Pressure) WSP

Durable Construction for Optimal Performance

A.S.M.E. Sec.1 Compliant

Recessed Gasket in Chamber and Cover

Custom Built to Meet Your Requirements

Spring Washers for Constant Torque

Special Coating for Steam Service

Multiple Connections Available

High Quality Mica Shield for Glass Protection

The “Steam Line” TB40FL units are designed for steam service to 2000WSP. These Gages can be used as Direct Reading Sight Glass for boilers in compliance with A.S.M.E. PG-60. Visible ranges are achieved by using multiple sections with a minimum 1” overlap to ensure continuous visibility. The gage chamber is full width, and reinforced with internal tie bars to add durability to the product, and remove the possibility of lateral deflection, which can cause early gasket failure. All units are supplied with recessed gasket seats and forged covers which allow for easy and inexpensive maintenance.
