Praxair S.T. Technology, Inc.

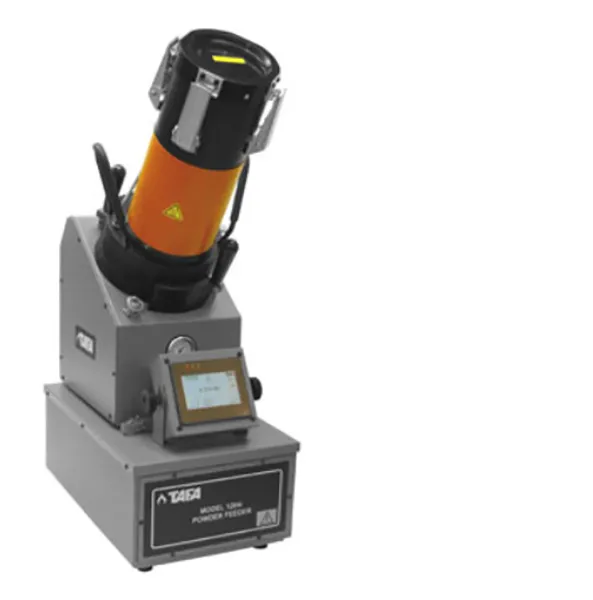

TAFA Model 1264i

Modeled after the proven 1264 design, the TAFA Model 1264i is a closed-loop RPM control with high/low warnings that improve powder feed-rate control and coating reproducibility. The feeder comes with a state-of-the-art PLC for process control and an easy-to-use touchscreen that can be mounted remotely. It also includes a removable quick-change powder hopper that is 50% larger than the Model 1264 and delivers an increased pressure rating of up to 125 psi / 862 kPa.

Model 1264i features:

• Heater blanket with on/off control
• High/low wheel RPM warning
• Maintenance functionality
• Multiple powder wheel options
• Pressure rated up to 125 psi / 862 kPa
• Pressurize/depressurize mode selector
• PLC control
• Powder hopper pressure display and relief valve
• Recipe storage
• Removable, high-capacity 300 cubic inch / 4,916 cubic centimeter powder hopper
• Touchscreen controller (remote mountable)

Optional enhancements:

• 2-25 RPM motor for high-feed-rate applications
• 2-hopper storage rack
• 4-hopper storage cart
• Externally mounted, pinch valve kit for low-pressure liquid-fueled HP/HVOF operation
• Low-height cart
• Spare hopper assemblies
