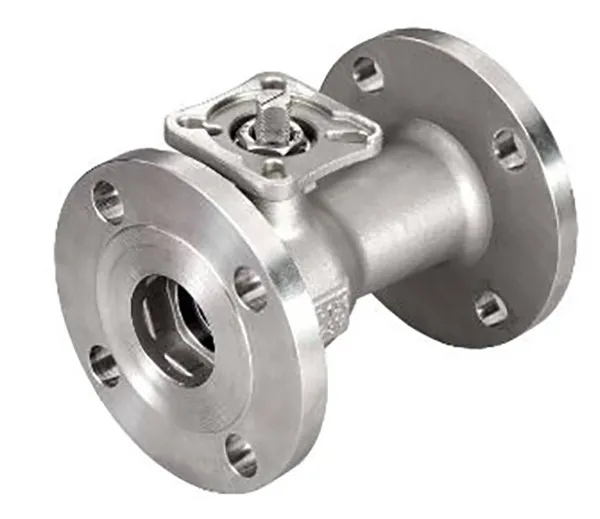

Flanged Ball Valves

Flanged Ball Valves

1” – 4” Class 150 Direct Mount * Fire Safe

Figure Numbers: B501

Design Features

  • Standard port, 1”~4” (DN25~DN100)
  • W.P. : CLASS 150
  • W.T. : -20°C~200°C (-4°F~392°F)
  • Investment casting
  • Blow-out proof stem
  • Live-loading design
  • Silicone Free
  • Anti-static device
  • Direct mounting pad ISO 5211
  • API 607 Fire safe approved
  • Wall thickness: ASME B16.34
  • Flange dimension: ASME B16.5
  • Face to face: ASME B16.10
