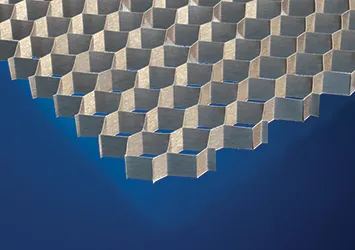

PCGA-XR2 3000 Series Aluminum Honeycomb
PCGA-XR2 3000 Series Aluminum Honeycomb
Description:PCGA-XR2 3000 Series commercial grade aluminum honeycomb is a lightweight core material offering excellent strength and good corrosion resistance for industrial applications at low cost. PCGA-XR2 3000 Series honeycomb is made from 3000 Series aluminum alloy foil.
Features:• High thermal conductivity
• Flame resistant
• Good moisture and corrosion resistance
• Fungi resistant
• Low weight/High Strength
Applications:PCGA-XR2 3000 Series honeycomb uses include air/light directionalization, energy absorption, tooling, ceiling and floor panels, counter tops and other applications for which elevated physical and mechanical properties are not required.
Availability:
PCGA-XR2 3000 Series honeycomb is available in four forms: unexpanded blocks, unexpanded slices, untrimmed expanded sheets and cut to size expanded sheets. It is also available with or without cell perforations to facilitate cell venting for certain applications.
Cell Sizes:1/4″ – 1.0″
Densities:1.2 pcf – 5.2 pcf
Sheet “Ribbon” (L):48″ typical – 72″ max
Sheet “Transverse” (W):96″ typical – 200″ max
Sheet Thickness (T):35″ max
Tolerances:Length: +6″, -0″
Width: +6″, -0″
Thickness: ±.008″ (under 4″ thick)
±.062″ (over 4″ thick)
Density: ±15%
Cell Size: ±15%
