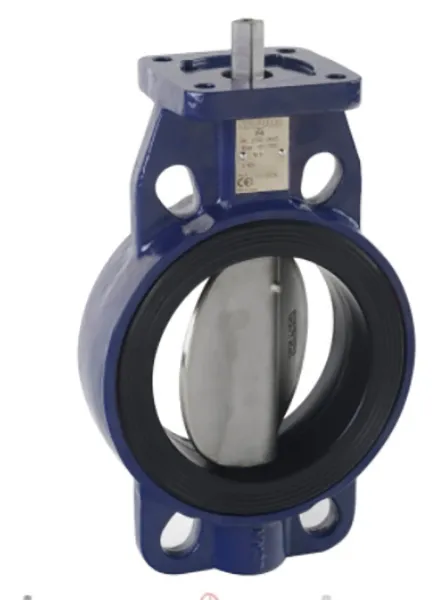

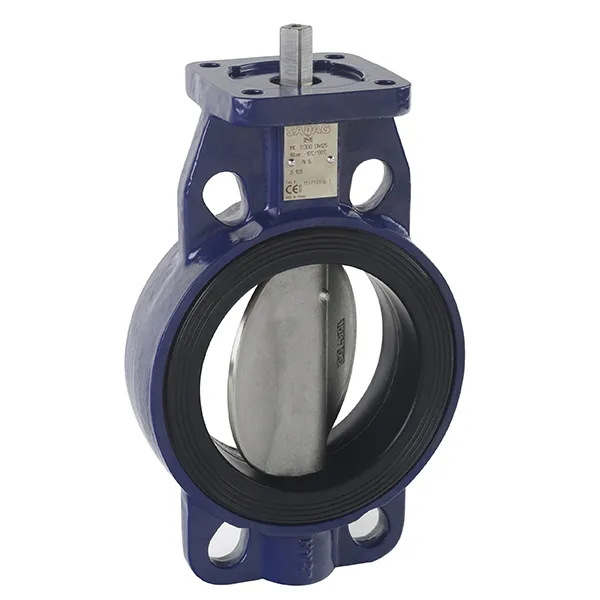

SAPAG JMC Resilient Seated Butterfly Valve
Resilient Seated Butterfly Valve
The SAPAG JMC range features a proven disc, shaft and seat arrangement designed for use in high pressure and high velocity applications.
General applications
Water distribution and treatment networks, Food industry, Paper industry, Chemical and petrochemical industry, Sea water networks, General industry, Vaccuum (tested at 1 torr), etc.
Technical data
Valve size (DN) : 40 – 3000
Working pressure (bar) : 25 max (acc.DN)
Températures (°C): -29 / 170
Bidirectional design
Leakage Rate : EN12266-1 – Rate A (no leakage)
Flange type
Wafer / Lug / Double Flange
PN 10/16/20/25/40/50
ANSI 150/300
Others : on request
Certifications and approvals
Marine : Bureau Veritas, DNV
Oil : Total
Fire protection : UL, VDS
Potable water : ACS, WRAS, PSB
Food : FDA, CE1935
Electrical continuity
Advantages:
Face to face ISO 5752 – S20
Low weight
High flow rate coefficient Kv
High resistance to external stress
Dryshaft design
Large range of seat and dics materials
Seat Mechanical anchorage in the body.
Elastomeric seat of Very high Quality (Origin : France)
