PERONI RUGGERO S.R.L

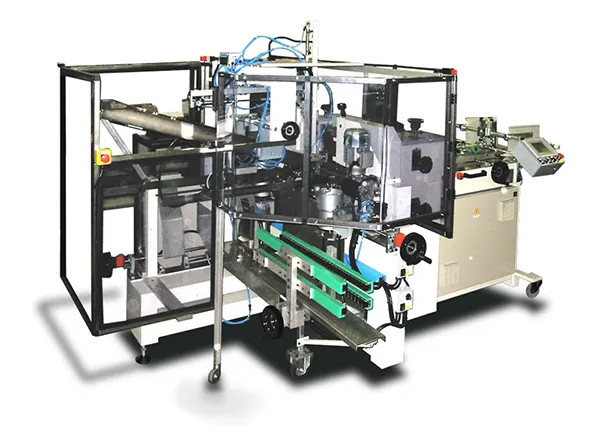

RING-BINDER ASSEMBLING LINES LINEA MEC 25

Automatic line for multi-creasing and ring-metal riveting, supplied with board feeder.

Technical features

Materials:

• coated boar
• fiber board or similar
• ring-mechanisms and Auto- punching rivets with cap standard range
• Cardboard thickness: 1 mm to 3,5 mm
• Production capacity: up to 25 cycles/min. (with 2 creases)
• Electrical power req.: 3,7 Kw
• Compressed air: 250 NL/min. (pressure 7 bar)
• Overall dimensions: L=3600mm; W=2100mm; H=2000mm;
