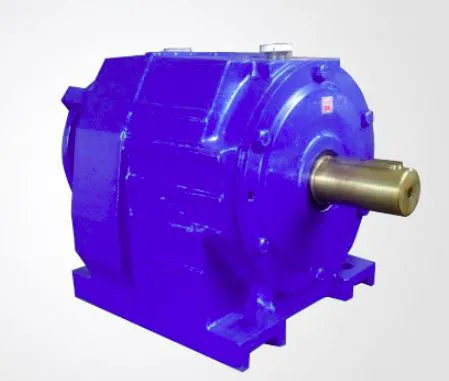

Inline Helical Geared Motor

Inline Helical Geared Motor

Helical Gears, Ahmedabad

HITESH 'M-Series' Inline Helical Geared motors in Double / Triple reduction models having motorised /solid inputs are intended to satisfy all the requirements of a reliable drive for slow-speed high-torque application. Standard range of HITESH helical geared motors, available in foot-mounted and flange-mounted versions, offer un-parallel performance covering output speed graduated from 9 to 1230 rpm with motor power ratings ranging from 0.18 kW to 90 kW. The gearbox and motor built as a single unit looks stylishly compact which ultimately results smooth and silent operation in an efficient fashion. The solid input version incorporates an input solid shaft mounted on a bearing housing having dual bearings of ample capacity.

Features of Inline / Coaxial Helical Gearmotor:

• Helical Gear Units are designed for continuous duty under difficult operating conditions.
• Gears are case carburized to a hardness of 58 - 62 HRC for durability.
• Gear case and flanges of high strength gray cast iron.
• Available in Foot mounted or flange mounted options
