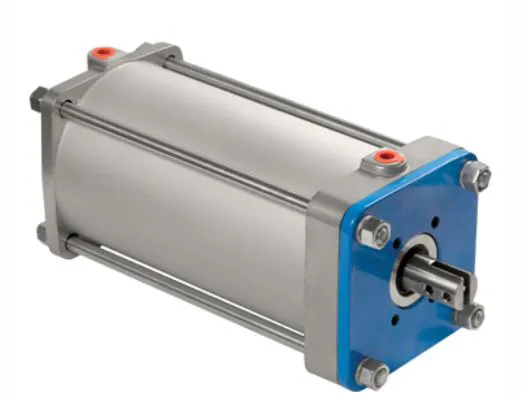

STANDARD PNEUMATIC CYLINDER

Orbinox standard double acting cylinders are speciffically designed to suit Orbinox knife gate valves.

MAIN FEATURES

End caps and barrels up to bore 12”/300mm are made of aluminium

Barrels with bore 14”/350mm and 16"/400mm are made of composite material

Piston rod in stainless steel

Air supply can vary from 50psi/3,5bar up to a maximum 150psi/10bar

Air quality requirements according to ISO 8573-1 Grade 5:4:3 for normal processes, Grade 5:3:3 for cold temperature applications (min.-20º C water dew point); for cylinders with positioners Grades 3:4:3 (standard) / 3:3:3 (-20ºC)
