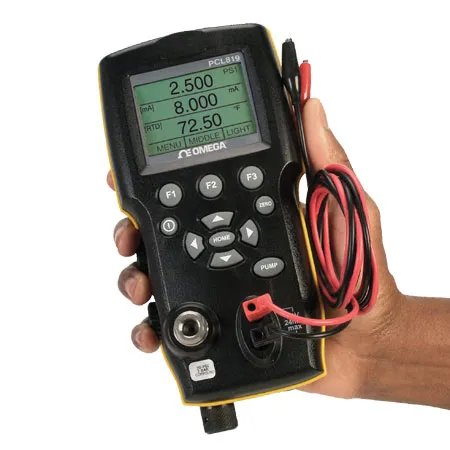

Handheld Pressure Calibrator with Integral Electric Pressure Pump

Handheld Pressure Calibrator with Integral Electric Pressure Pump

Handheld Pressure Calibrator with Integral Electric Pressure Pump

  • Internal Electric Pressure Pump Generates Pressure from -0.8 to 20 bar (-12 to 300 psi)
  • Accuracy to 0.025% FS
  • Source and Measure 4 to 20 mA
  • 24 Vdc Loop Power Supply to Power Device Under Test
  • Rugged, Compact Design, Just 1.2 kg
  • Operates on 8 Standard “AA” Alkaline Batteries
  • Pt100 RTD Input for Temperature Measurement
  • Large Graphic Style LCD with Backlight Can be Configured to Display Up to 3 Inputs Simultaneously
  • 15 User Selectable Pressure Units

Description

OMEGA’s PCL819 combines a high performance handheld pressure calibrator with an integral electric pressure pump in a small, lightweight, handheld unit. Before this innovation, users had to manually generate pressure using cumbersome manual pumps or large, heavy boxes with limited portability and battery life. The PCL819 is only slightly larger than the PCL340 series and weighs in at a mere 1.2 kg. The housing is easily contoured to fit a technicians hand with good balance top to bottom. The internal pump can generate vacuum or pressure from -12 to 300 psig. The PCL819 has an internal isolated pressure sensor with 0.025% of full scale accuracy and comes in three gauge and two absolute pressure ranges.
In addition to pressure the unit also has an input for Pt100 RTD sensors for temperature and can measure and simulate 4 to 20 mA current loops. The large LCD graphic display can be configured to display up to 3 variables at the same time by the user. It provides a number of convenience features such as switch testing, percent error, and a damping function. Up to 5 frequently used configurations can be stored and retrieved with one button recall.
SPECIFICATIONS
Accuracy:
    Pressure: ±0.025% FS from 15 to 35°C (59 to 95°F) (add 0.002%/°C outside of 15 to 35°C)
    mA: ±0.015% of reading ±2 counts (simulation and measurement)
    Volts: ±0.015% of reading ±2 counts (measurement only)
    Temperature: ±0.1°C (0.2°C) (measurement only)
Operating Temperature: -10 to 50°C
Storage Temperature: -20 to 60°C
Internal Pump: Electrically operated pneumatic pump generates -0.8 to 20 bar (-12 to 300 psi)
Batteries: 8 “AA” Alkaline batteries (included)
Battery Life: 100 pump cycles to 300 psi or 1000 cycles to 30 psi minimum
Pressure Connection: 1/8 NPT female
Electrical Connection: Standard banana jacks
RTD Connection: 4 pin LEMO style
Dimensions: 200 H x 100 W x 60 mm D
Weight: 1.2 kg
