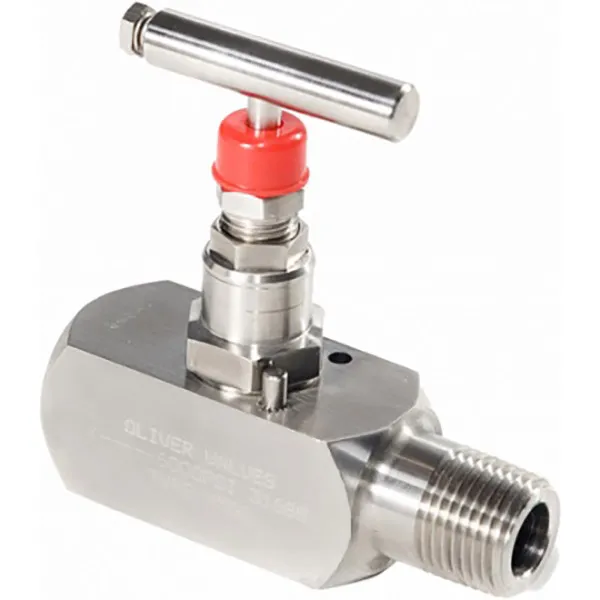

Male M Type Needle Valve
Male M Type Needle Valve
The ‘M’ Type Single Isolating Needle Valve is designed for safe and reliable isolation giving bubble-tight shutoff, non-rotating, anti-galling tips and dynamic self-adjusting spindle seal. This accommodates a long life for the needle valve to be used in a variety of applications.
Oliver Valves needle valves provide metal to metal seating and small-bore isolation valve for many applications without having to resort to larger and more expensive globe valves.
Overview
The Male ‘M’ Type Needle Valve is supplied as standard with a non-rotating tip to allow linear closure while eliminating galling.
Oliver Valves’ standard Male ‘M’ Type Needle Valve is rated at 413bar (6,000psi) but can be rated at 689bar (10,000psi). Standard Temperature range from 240 Deg C up to 540 Deg C.
All NPT connection threads are Single Point CNC machined.
All Oliver products have material traceability and pressure test certificates to BS EN 10204 3.1. A unique code is stamped on all valve bodies linking them to their material and chemical analysis certificates.
The Male ‘M’ Type Needle Valve tips are ‘interchangeable’ without special tools or spindle changes in options of hard, soft and metering tips.
Safety – spindles are ‘anti-blowout’ as standard, a major safety feature. Also, ‘an anti-removable’ steel pin is fitted into the body so that the head unit cannot be removed inadvertently.
Dust cap protects spindle threads from ingress of dirt and is colour coded for particular service.
With an unrivalled level of quality and support, we implement valve solutions directly into existing projects to pioneer new technology. If you would like more information regarding our needle valves, please contact Oliver Valves today!
