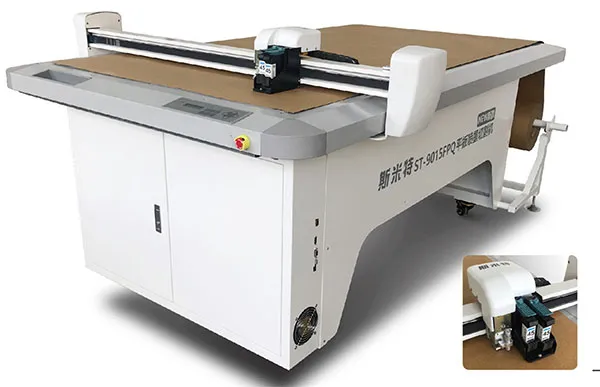

Pattern Cutter Machine
Owing to our in-depth knowledge and proficiency in this domain, we are highly occupied in offering an optimum quality range of Inkjet Pattern Cutting Machine to our customers. These products are used to cut the Brown Papers / Cardboard into desired patterns and shapes. Our offered products are highly appreciated in the market for their effective performance, low maintenance and resistance to rust. Performance Features
Flatbed cutter with consecutive feeding system, which can cut single craft paper or paper in roller, cutting length without limitation
Multi-function flatted-bed cutter, not only cut marker but paper in different thickness 40g-600g for printing paper, 80g-600 for cutting paper
Performance Features:
Flatbed cutter with consecutive feeding system, which can cut single craft paper or paper in roller, cutting length without limitation
Multi-function flatted-bed cutter, not only cut marker but paper in different thickness 40g-600g for printing paper, 80g-600 for cutting paper
Parameters:
Cartridge Number: 2/45 Ink cartridge, Max Cut Width: 120cm/165cm/185cm
Max. Plotting Seed: 40-120 Square meters/hour, Max Cut Speed: 1200mm
Paper Feed Mode: Rubbing paper structure,
Paper Take-up Mode: Single Piece of pattern printing or continuous printing no need worder
Max. Roll Paper Weight: 20kg/30kg/35kg, Plot Paper: 80g-200g
X control Motor: Servo Motor and its Driver system
Y control Motor :Servo Motor and its Driver system
PC Interface: USB, File Format: HPG/HPGL/HPGL2，plt
Voltage: AC 220V/110V, Electrical Source Frequency: 50～60Hz
Max. Power: 180W
