Mueller Company Inc

OS&Y Valve 2-3 Flanged Ends

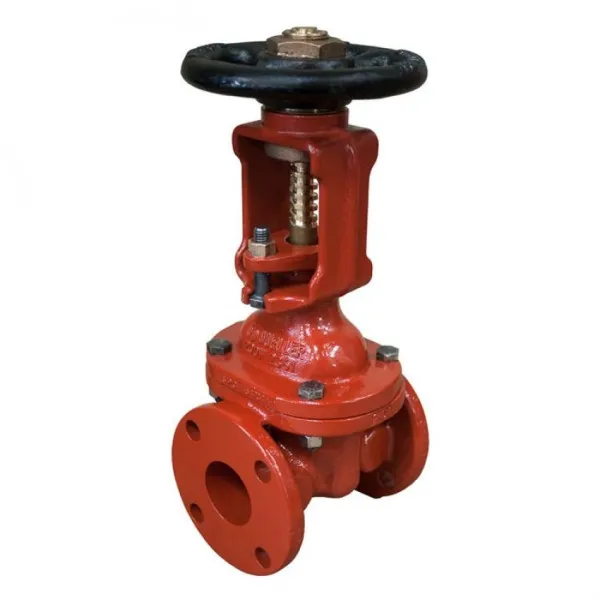

OS&Y VALVE 2"- 3" FLANGED ENDS

R-2361-6Sizes: 2” - 3"

FEATURES:

• UL 262 Listed and FM 1120/1130 Approved and certified to ANSI/NSF 61 & 372

• Epoxy Coated interior and exterior surfaces

• Outside Screw & Yoke (O.S.&Y.)

• Rubber encapsulated iron wedge

• Adjustable packing

• Handwheel – open left or open right

• 200psig (1400 kPa/14 barg) maximum working pressure - 400psig (2800 kPa/28 barg) static test

• Epoxy coating meets or exceeds all applicable requirements ANSI/AWWA C550

• Flanged end drilling complies with ASME/ANSI B16.1 Class 125

OPTIONS:

• Stainless steel fasteners: Type 316

• Stainless steel stem: Type 304 and Type 316

• ASTM B98-C66100/H02 stem

• EPDM disc and O-rings
