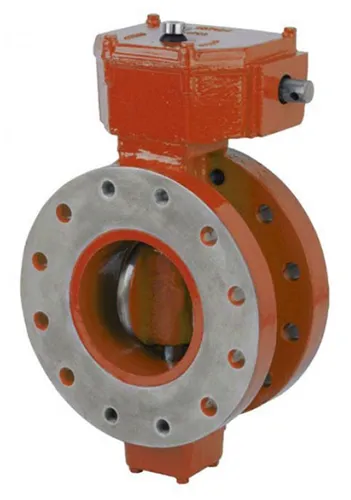

LINESEAL XP

LINESEAL XP® (CLASS 250B)

3" - 48” Butterfly Valves

SPECIFICATIONS:

• 250psig (1723kPa) maximum working pressure

• Meets or exceeds all applicable requirements of ANSI/AWWA C504 Standard Class 250B; NSF 61 certified

• Body - Ductile Iron ASTM A-536 (65-45-12)

• Buried service valves: I.D. and O.D. coated

• Above ground valves (ordered with either a hand wheel, position indicator on the actuator, or lever); minimum 8 mills epoxy coated interior and exterior; meets AWWA C-504 standards.

• Seat-in-body design reduces seat failure due to corrosive buildup in the valve and pipeline

• Disc edge is 316 Stainless Steel

• Disc - Ductile Iron ASTM A-536 (65-45-12) (3"-4" Stainless Steel ASTM A351 CF8M)

• Nonmetallic bearings prevent galvanic corrosion and provides lower coefficient of friction

• Chevron "V" type packing is self-adjusting to last the life of the valve

• 3"-24" Standard 304 SS hardware
