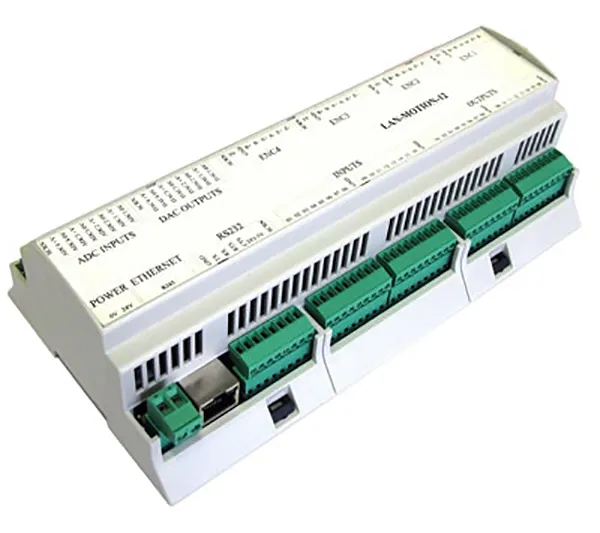

LAN Motion Controller

LAN-Motion controller is an Ethernet based multi-axis servo and stepper motion controller. It based on a fast 32-bit RISC processor and floating point co-processor with optical isolation providing a high level of protection against noise. Together with the Windows-based GNC software (GNC Pro or GNC-lite) and excellent price performance, it offers a flexible and affordable solution for use in a wide variety of industrial applications.

This LAN-Motion servo and stepper motion controller is ideal to work with our hybrid stepper motors and MSD stepper drives for the stepper axis control or with our ProNet servo system (servo motor with servodrive) for the servo axis control.

Resources

Datasheet

Support & Resources

Shop Online

Key Features:

Comes with FREE Windows-based "GNC-Lite" software. GNC is a proven motion control solution, which is used in hundreds of applications

High Speed Ethernet 10/100 Mbps. communication

No expensive interface boards or cables required

Standalone or PC/HMI linked operation

Compact DIN-rail mounting

4 axes of Servo Control

8 axes of Stepper Control
