Ming Wei Paperware Machinery Co. Ltd

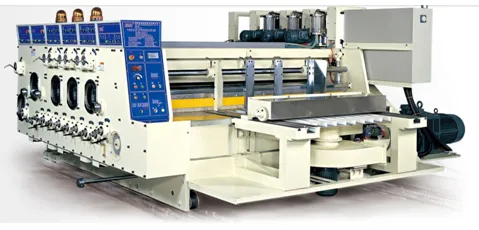

PS Flexo Printer Slotter & DS Auto Stacker

Model

Until

PS-1S(24" x 60")

PS-1(36" x 84")

PS-2S(50" x 96")

PS-2/2L(60" x 96" x 108")

PS-4(M)S(84" x 132")

PS-4(M)(84" x 142")

PS-4(M)L(84" x 157")

PS-4(M)2L(84" x 177")

Machine width

mm

1,800

2,400

2,700

2,700 / 3,000

3,750

4,000

4,400

4,900

Max. production speed

Sheet / min

120

120

120

120

80

80

70

60

Max. sheet size

mm

500 x 1,600

780 x 2,180

1,050 x 2,500

1,400 x 2,500,1,400 x 2,800

2,070 x 3,400

2,070 x 3,650

2,070 x 4,050

2,070 x 4,550

Max. sheet size with skip feed

mm

900 x 1,600

1,200 x 2,180

1,500 x 2,500

1,800 x 2,500,1,800 x 2,800

2,400 x 3,400

2,400 x 3,650

2,400 x 4,050

2,400 x 4,550

Max. print area

mm

500 x 1,480

850 x 2,050

1,200 x 2,350

1,480 x 2,350,1,480 x 2,650

2,000 x 3,400

2,000 x 3,600

2,000 x 4,000

2,000 x 4,500

Min. sheet size

mm

170 x 400

240 x 500

300 x 560

300 x 560,300 x 560

460 x 665

460 x 665

460 x 665

460 x 665

Print die thickness with backing material (standard)

mm

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

Adjustment laterally to cylinder direction

mm

10

15

15

15

15

15

15

15

Min. interval between slots

mm

170 x 40 x 170 x 40

190 x 50 x 190 x 50

215 x 50 x 215 x 50

215 x 50 x 215 x 50

260 x 50 x 260 x 50

260 x 50 x 260 x 50

260 x 50 x 260 x 50

260 x 50 x 260 x 50

Required supply: Power

hp

28

33

45

47 / 50

108

108

118

118

Required supply: Main power

hp

15

20

25

25 / 25

50

50

60

60

Machine size (length x width x height)

mm

3,900 x 3,800 x 2,000

4,000 x 3,600 x 2,100

4,700 x 4,400 x 2,200

4,900 x 4,400 x 2,300,4,900 x 4,700 x 2,300

18,000 x 6,050 x 3,500

18,000 x 6,300 x 3,500

18,000 x 6,700 x 3,500

18,000 x 7,200 x 3,500

Net weight of machine (approx)

kg

11,300

12,500

18,800

20,100 / 21,100

33,000

35,000

38,000

41,000

Auto Stacker Specification

Model

Until

DS-1(84")

DS-2(96")

DS-3(108")

DS-3L(120")

DS-4(132")

DS-4L(142")

DS-5(157")

DS-7(177")

Max. machine speed

m / min

120

120

100

100

90

80

80

70

Max. sheet size

mm

1,400 x 2,300

1,700 x 2,600

1,700 x 2,800

2,000 x 3,200

1,800 x 3,300

2,200 x 3,600

2,200 x 4,000

2,200 x 4,500

Machine size

mm

6,000 x 3,000 x 3,200

6,290 x 3,500 x 3,200

6,290 x 3,800 x 3,200

6,290 x 4,100 x 3,200

6,200 x 4,400 x 3,200

6,500 x 4,400 x 3,200

6,900 x 4,400 x 3,200

7,400 x 4,400 x 3,200

Machine weight (approx)

kg

2,000

2,500

3,000

3,500

4,000

4,500

5,000

6,000

Power required (approx)

hp

6

9

10

12

15

15

20

20
