MARSDEN, INC.

GAS IR SYSTEMS

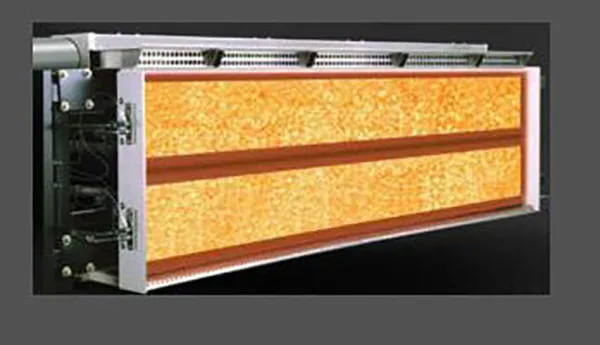

Marsden’s flagship product is it’s unique Gas IR Emitter. These emitters utilize Marsden’s proprietary technology, called Embedded Combustion™, to transfer more than three times the IR flux than metal fiber surface combustion burners per unit of fuel input.

Embedded Combustion™ has changed the way the industry goes about the challenges of non-contact IR drying and IR curing. It is a process that directs the combustion of the gas/air premix to initiate 1/8″ within the outer surface of the 1″ thick infrared emitter. This increases the emitter/hot gas contact surface area and residence time while also reducing the temperature difference between the IR emitter structure and the hot gases leaving the IR emitter.

GAS IR SYSTEMS BENEFITS

Marsden Embedded Combustion™ IR Emitters are designed to set the standard in the industry for Safety, Performance, Reliability, and Value while being the most environmentally friendly infrared drying system available on the market.

SAFETY

             The only IR System on the market that reverts to a cool, safe shutdown in only one second

             Exceeds safety regulations established by Factory Mutual (FM) as well as local safety codes.

             Systems shipped to the European Union are affixed with the CE Mark due to compliance to established Harmonized Standards.

PERFORMANCE

             5 Second Heat-Up / 1 Second Cool Down

             Best Conversion to Radiation Efficiency in the Industry 65%+

             Metal-Free Emitter for Long Life at Full Power

             Instantaneous Temperature Output Modulation

             Moisture Profiling Capabilities (in increments as narrow as 3”)

             High Evaporation Rate (30+lbs/ft2/hr)

             Non-detectable Polluting Emissions

             Radiant Outputs to 45,000 Btu/ft2/hr

             Available for Ovens to 800°F

RELIABILITY

             Individual Flame Safeguard Controllers Provide Diagnostic Monitoring of Each Row of IR for unsurpassed ignition reliability

             Unique direct spark and proving pilot devices provide dependable and easily maintained flame initiation process

             Longest Emitter Lifetime Guarantee in the Industry with no service contracts required

VALUE

             Five Year Emitter Guarantee

             Two Year “Bumper-to-Bumper” System Component Guarantee

             Performance Guarantee

             One-Year Free Service Guarantee

             100% Ignition Reliability Guarantee

             No Service Contracts Required
