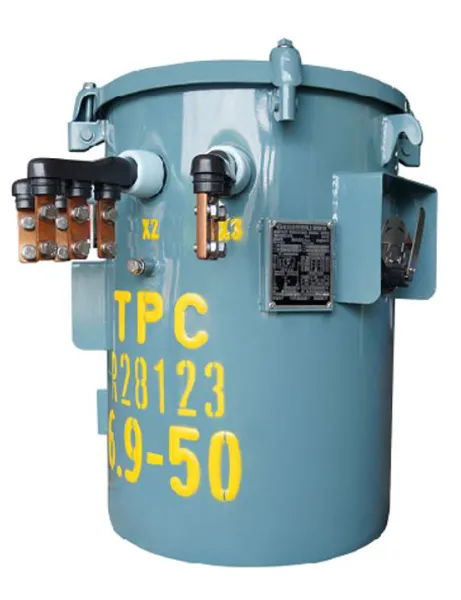

Single-Phase Overhead Distribution Transformer
Linkage Electric manufactures a series of single-phase overhead-type distribution transformers. Single-phase transformers are available as conventional (5~333 kVA) or as completely self-protected (CSP 25~167 kVA), offered in a variety of ratings to meet or exceed the requirements of applicable ANSI® and NEMA® standards. Units designed comply with Chinese Nation Standard and Taipower utilities service standards are also available. CSP transformers have direct connected primary arresters and internal primary voltage fuses, which eliminates the need for separately mounted protective devices and lowers installation costs. The overcurrent interrupter is an overcurrent protective device that protects distribution transformers from damaging overloads and secondary faults, and is also used for switching the transformer “on” or “off.”
High quality silicon steel or amorphous ribbon core
Meets or exceeds ANSI® and NEMA® standards
Tank coating exceeds IEEE Std. C57.12.31™-2010 standard
Tin-plated high- and low-voltage bushing terminals to accommodate aluminum or copper conductors
Wet process porcelain high-voltage bushings resistant to high-voltage corona
Tank grounding provisions
Electrical grade mineral oil
Heavy-duty lifting lugs and hanger brackets per ANSI® requirements
Visible cover ground on units with cover-mounted bushings
Recessed tank bottom that offers protection when sliding over rough surfaces
Automatic pressure-relief device
Arrester mounting and grounding provisions (as per customer requirements)
Internal mark indicating the proper oil level
Permanently stamped secondary leads to ensure proper identification
Corrosion-resistant cover band
