Kuen Yuh Machinery Engineering Co., Ltd.

Ultraflex

Ultraflex

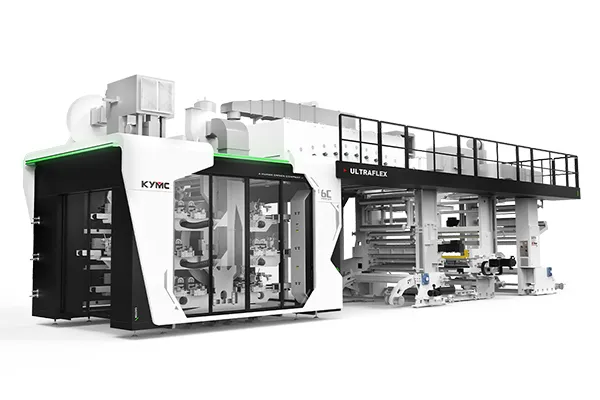

Utraflex / Utraflex-H (The UV-LED press)

The Ultraflex press is a UV-LED central impression press to provide high quality print with high opacity. At the same time Ultraflex press is an eco friendly solution as UV-LED application does not emit VOCs. The Ultraflex-H is a hybrid press that integrates 3 technologies, the UV-LED ink application, solvent/water-based ink application and the central impression (CI). The Ultraflex-H enables you to take advantage of the UV-LED application but at the same time draw back to the solvent based or water-based print stations when needed If you are looking for a flexible, cost effective and production efficient press, the Ultraflex series is the press for you to customize.

Standard Specification

• UV-LED inking and curing system
• (Solvent/water-based) inking and drying system (Ultraflex-H only)
• Interchangeable drying / curing units (Ultraflex-H only)
• Non-stop turret type unwind and rewind
• Print and anilox sleeve
• Auto registration system
• Infeed web guide

Highlight

The Ultraflex / Ultraflex-H is a UV-LED central impression press. The Ultraflex press is a full UV-LED press. This press is for printers looking for a full UV-LED application with high print quality and low waste. The Ultraflex-H press is a hybrid for printers looking for maximum flexibility. Through Ultrafex-H printers can take on the widest range of product line while not sacrificing the benefit of print quality and eco friendliness. The Ultraflex series is designed for…

Operation Comfort

• Touch screen interface
• User friendly layout screen control
• Fully digitalized controls for precise print settings
• Easy access to printing stations

Print Quality

• Heavy duty designed machine frames
• Servo motor control guarantee excellent print registration holding
• Web viewing system
• Automated registration control
• Micrometric kiss impression control to one micron

Quick job Change

• Anilox and plate sleeve design
• Auto pre-register control
• Auto quick wash features for inking system
• Job memory for repeat tasks

Remote Service Assistance

• 24/7 machine online diagnostic system
• Exclusive PLC Network Connection Technology to achieve deep online diagnose and prompt remote-maintenance.

Industrial I4.0

• OPC UA Data Exchange Protocol for communication between devices, machines and enterprise systems (ERP, SCADA, CRM…etc)
• Remote HMI monitoring via mobile devices

Safety

• Compliant with Conformité Européene or Australian Standard
• Certification service available with CSA, NEC and IEC
