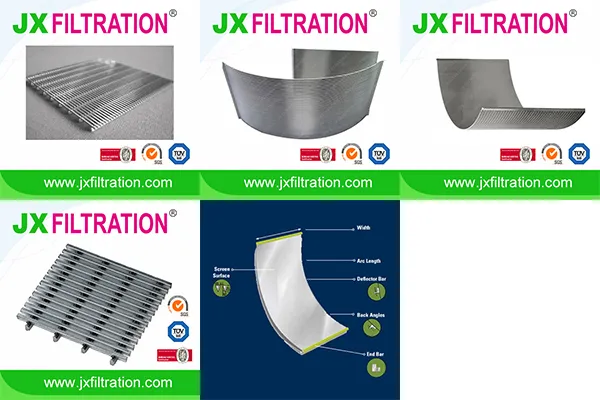

Wedge Wire Panel

Wedge Wire Panel

Introduction

Wedge wire screen has high strength, rigidity and bearing capacity, and can be made into rigid screening and filtering devices of various shapes.

V-shaped wire profiles and support rod made of the wedge wire screen. The distance between wire profiles is called slot size (screen precision or gap opening), and filtrate flows through the slot but intercepted impurities on the surface of wire profiles.

Features:

1. Easy to leak, wear-resisting, corrosion-resistant.
2. The mesh section is trapezoidal, the gap is narrow at the top and wide at the bottom.
3. Long service life, its service life is more than double that of similar products.
4. Material: SS304, SS304L, SS316, SS316L, duplex steel etc. can be customized.
5. Larger circulation area, uniform slots and accurate precision.
6. The minimum slot size can be 0.2mm.

Note: dimensions, slot size and construction material can all be customized.
