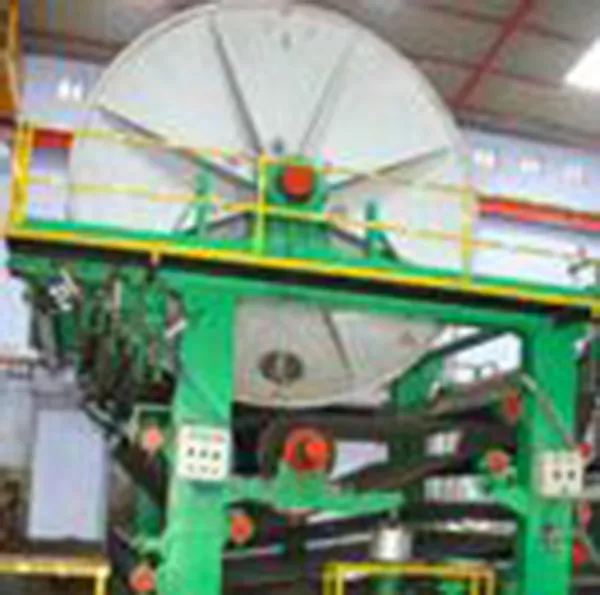

M.G. Cylinder

M.G. Cylinder

Salient Features

  • MS fabricated M.G.Cylinder up to 16 feet (4.88 meter) diameter.
  • Width up to 4.00 mtrs is in regular production.
  • SS Coating on surface (Optional).
  • Stress relieved for removing stresses developed during bending and fabrication.
  • Surface is machined and ground to achieve Mirror finish on the surface -Finish Ra 8 micron.
  • Scooping system is provided to remove condensate efficiently.
  • Heavy duty framing is provided for vibration free operation.
  • Single and double Touch roll is provided depending upon the process requirement.
  • Spur Gear and pinion in Cast Iron/ MS Fabrication/ polypick, teeth are geometrically evenly cut on precise Hobbing Machine for noise free operation.
  • MG Cylinder is designed to operate on working pressure up to 6.0 Kgs/cm2.
  • Hydraulically tested to a pressure of 11.0 Kgs/cm2 and held for 24 hrs.
