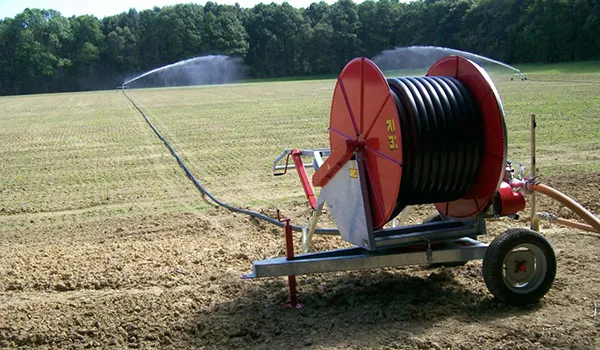

RM 540GX HOSE REEL IRRIGATION MACHINE
540GX Standard UK specification:
• Polyethylene Hose (with a three year guarantee)
• Low pressure by-pass turbine
• 3-Speed belt gearbox
• Pinion drive mechanism on to hose drum
• Galvanised chassis and drum
• Single axle
• Tyres 145-13 (or similar)
• Manual turntable
• Mechanical stabiliser legs and front jack
• Mechanical trolley lifting
• Galvanised 3-wheel trolley with adjustable wheel centres and wheel weights (front trolley wheel fixed)
• Slow closing automatic shut-down valve
• Manual unwinding brake
• PTO rewind
• Pressure gauge
• Digital tachometer
• Komet 163 part/full circle sprinkler with jet-breaker and nozzles
• 8 metre layflat connection hose and filter
• Automatic speed compensator
• CE Marked
Optional extras:
• Petrol engine instead of turbine
• Treated turbine for heavy waters
Booms available:
- 14 metre boom with a maximum wetted width of 20 metres
