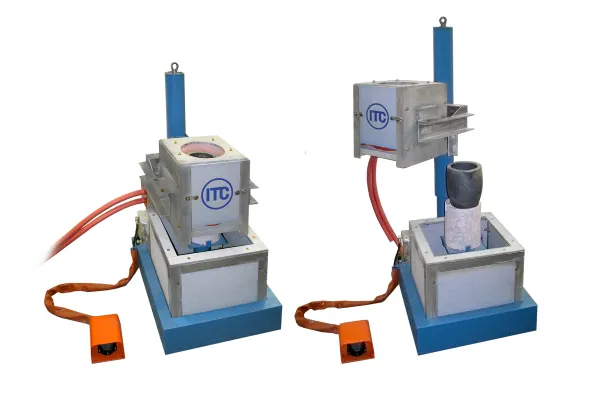

Lift & Swing Melting Furnaces

Lift & Swing Melting Furnaces

Small Lift & Swing Melting Furnace

Features

This induction melting furnace has a capacity of up to 30lbs/ 13kg for melting steel, using a double ceramic crucible in the crucible, ideal for investment casting. As well as, 50lbs/ 22kg capacity for brass, non-ferrous metals, clay, graphite melting. This can be done using either silicon carbide or machined graphite crucible. The lift and swing furnace has a built-in splash containment shield and refractory lined spill pan. It is powered by a single airline connection to a 100psi/ 6.89bar source, additionally, both the water and power connections can be placed on either side. It is equipped with a movable foot-operated control valve and allows to be easily moved when not in use. The air over oil hydraulic cylinder lift provides smooth operation.

Optional Features

• Crucible lifting tongs
