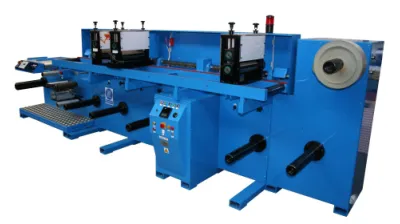

IDENT 250 CONVERTING PRESS

IDENT 250 CONVERTING PRESS

Summary

The Ident 250 Converting Press starts the range of the wider web machines. They are built robustly to exacting standards, is easy-operable and versatile.

Modular design of the 250 machine allows interchangeability of its units with any other Ident manufactured units of the same web width.

Key benefits of this machine are:

- web widths up to 250 mm;

- faster production speeds - up to 100 m/min.;

- user-firendly interface of the controls.

General Specification

• Maximum roll diameter on main unwind unit: 600 mm.

• Maximum web width: 250 mm.

• Maximum operating speed: 100 m/min.

• Bed lengths: 4 ft (1.22m), 6ft (1.83m), 8ft (2.44m), 9ft (??m), 10ft (3.05m).

• Underbed unwinds and rewinds: typically up to 5 depending on the bed length.

• Maximum roll diameter on base unwind/rewind: 600 mm.

• Standard mandrel supplied: 76 mm (3'').
