Humphrey Products Company

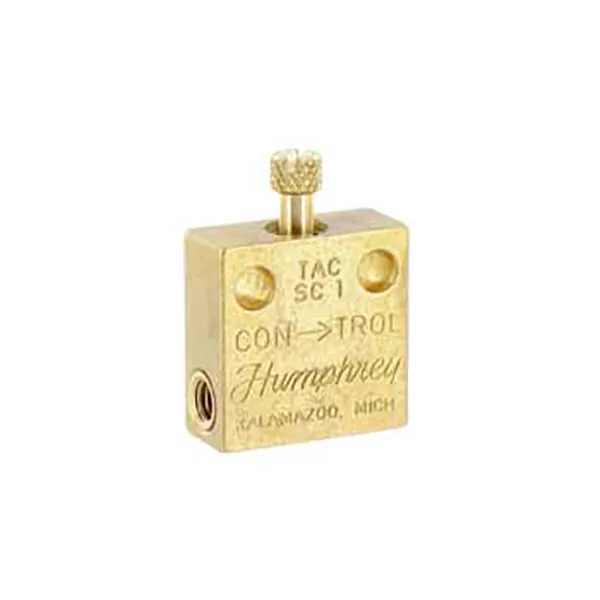

TAC Miniature Speed Controller

Complimenting the TAC Miniature Pneumatic Logic Line Up, Humphrey offers a manually adjustable flow control valve, model SC1, providing full flow in one direction and metered flow in the reverse direction. This design is commonly used to control air cylinder speeds by regulating the exhausting air. Humphrey SC1 is used in pneumatic logic time delay circuits as well.

Features of SC1 include:

• Two ports; Full flow one direction, metered flow opposite direction
• Manual speed controller
• Inline 10-32 UNF piping
• 3-125psi pressure range
