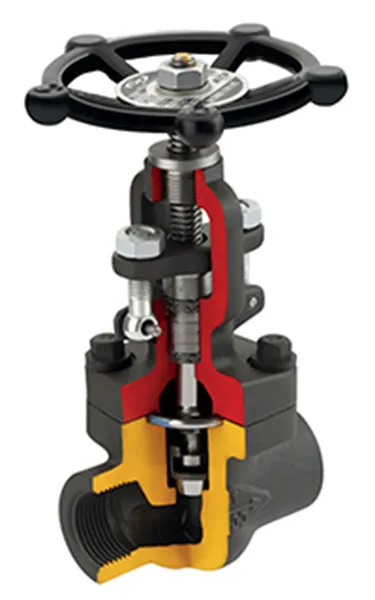

Globe Valve
Globe Valve
Product Details
ApplicationThrottling
Features / BenefitOS & Y Construction
Welded & Renewable Seat Rings, Pressure Seal Welded Bonnet on request for High Pressure
Ansi Class / Rating150#, 300#, 600#, 800#, 1500#, 2500#
Design StandardBS 5352, API 602, ISO 15761, ASME B16.34
Testing StandardAPI 598
Size15 mm to 50 mm
MaterialsBody : A105, F11, F22, LF2, F304, F304L, F316, F316L, F51,F53, F55, F347,F321,INCONEL 625, MONEL 400, HASTELLOY C-276, ALLOY 20 etc
EndsScrewed End, Socket Weld End, Butt Weld End, Flange End
OperationManual
