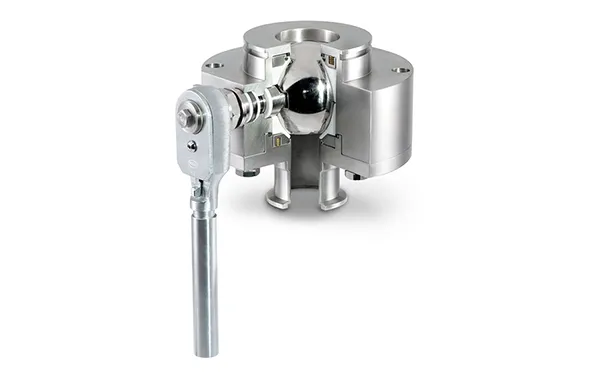

Sample Ball Valve

The Sample Ball Valve is designed for minimal accumulation of product between valve ball and vessel inner bottom.

Applications:

• Chemical
• Pharmaceutical
• Food
• Cosmetics

Medium:

• Gases
• Fluids
• Emulsion
• Sirup
• Suspension
• Granulate material
• Powder

SAMPLE BALL VALVE by ATEC VALVE

The Sample Ball Valve 1/2 inch (13 mm) to 3 inch (76 mm). Pressure max. 40 bar. Temperature range -196 °C to +500°C.

Design – low sump area, cavity free, ball with blind bore, spring loaded ball sealing system, chambered coil springs, double sealing of vessel flange, PTFE- adapter for sample bottle, compact design, one piece body design, adjustable and maintenance free stem sealing with additional o-ring.
