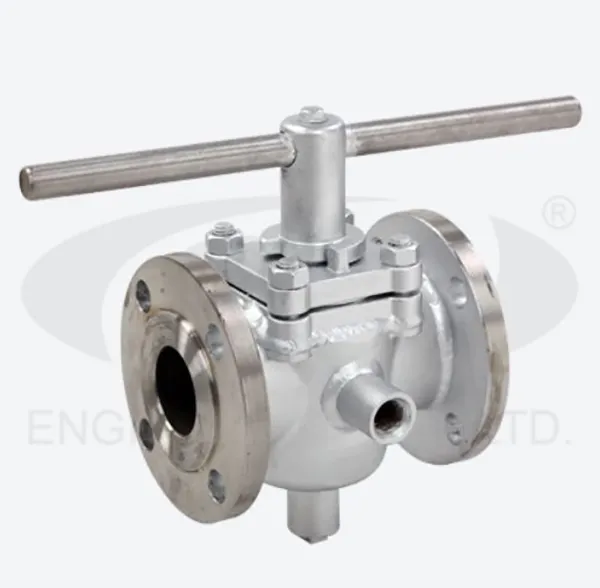

JACKETED PLUG VALVE
Application Isolation
Features / Benefit
Full Jacketed Design,
Multiple Connection for proper jacket drainage,
Specially designed for circulation of hot or
coldliquid or gas
Bi Directional Flow Inline PTFE Sleeve surrounds
the Plug Unique Body & Plug Design for Low Torque
Operation Self-Sealing Design suitable for vacuum
service, low maintenance cost cavity free,
ANSI Class / Rating 150#, 300#
Design Standard API 599
Testing Standard API 598, 100 % dielectrically spark tested
F to F Standard ASME B16.10
End Connection Standard ASME B16.5
Size 15 mm to 300 mm
Materials
Body : WCB, CF8, CF8M, Hastelloy,
Super Duplex, Alloy 20, LCB etc
Plug , Stem : WCB, CF8, CF8M, Hastelloy,
Super Duplex, Alloy 20, LCB etc
Sleeve : PTFE
Jacket : MS, Stainless Steel
