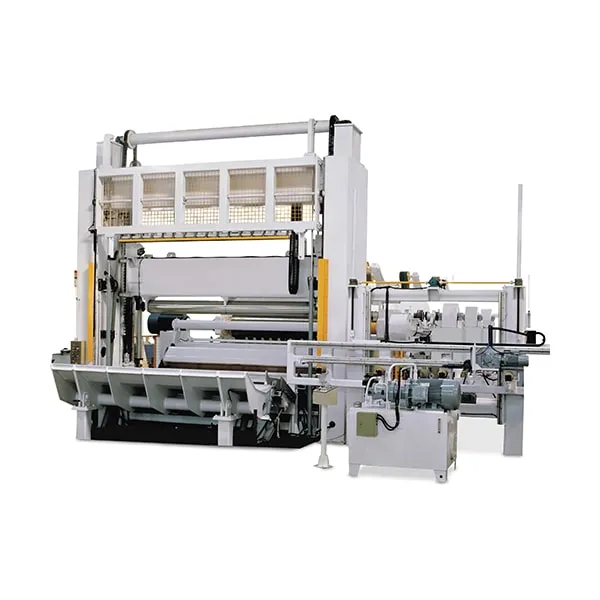

FC-V High Speed Slitting Rewinder
Characteristics
1. Rewinding control: Automatic pneumatic proportional valve controls linear slider rail lifting, hydraumatic servo system controls riding roller, pneumatic thimbles grasp core shaft;
2. Slitting bottom blade: each bottom blade is driven by independent external rotor motor;
3. Front & back rewinding rollers’ speed differential and riding roller, control final product’s tension and both ends’ neatness; Slitting blade is precisely controlled, tolerance±0.1mm;
4. Backstand: Could run both forward and reverse, easy to operate the machine; Independent driven guiding roller, and the web guide platform at the bottom, reduce the loss of elongation;
5. Leading calender technology: Steel to steel calender, both two roller are made of chilled cast iron, are driven by two motor respectively; Use pneumatic tyre increase pressure; calender rollers’ relative angle and gap size are both adjustable;
6. Shield-blade does both tail trimming job, and guarding job (while machine is running);
7. Automatic rewinding shaft feeding function;
8. Hydraulic control riding roller, pneumatic lifting reel core shaft;
9. Automatic pull-plug system (optional): easy to operate the machine, improves efficiency;
10. Spreading auxiliary roller (optional).
