Flexocon Geared Couplings

Flexocon Geared Couplings

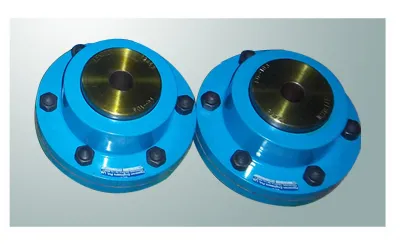

Flexocon Geared Couplings is used to join two rotating shafts for efficient transmission of Mechanical Power. Flexocon full gear Flexible Gear Coupling consists of two identical toothed hubs, two identical flanged sleeves with internal teeth, a gasket, a set of bolts, nuts and spring washers, lube plugs and two oil/grease retaining O-ring over the hubs. Flexocon Geared Couplings are manufactured employing tested raw materials through precision manufacturing processes using special purpose machines, jigs, fixtures, tooling and gauges and are subject to continuous inspection.

Flexocon Geared Couplings are designed and manufactured to accommodate Angular, Parallel and Axial Misalignments. Upto Plus/Minus 1.5 Degree angular misalignment capacity is provided in standard Couplings.

Features

• High Power to weight ratio.
• Compact assembly.
• Accommodates angular, parallel and axial misalignment.
• Larger bore capacities.
• Crown Gear teeth for longer life.
• Less backlash error.
• Heat treated as per application.
• Generally used upto 120째C.
• Close tolerance connecting bolts.
• Interchangeability.

Range of Resilient Couplings

• Full Geared Coupling.
• Half Geared Half Rigid Coupling.
• Mill Motor Type Coupling.
• BrakeDrum Type Geared Coupling.
• Spacer type Geared Coupling.
• Brake-disc Type Geared Coupling.
• Shear pin type Geared Coupling.
• Slide type Geared Coupling.
• Vertical type Geared Coupling.
• Single sleeve type Geared Coupling.
• Floating Shaft type Geared Coupling.
• Limiting end-float geared Coupling.
• Torsion Shaft Geared Coupling.
