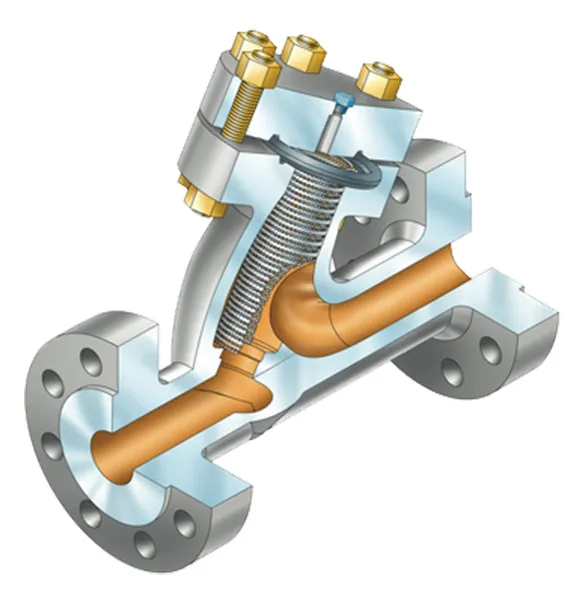

STRAINERS
Design features
9 Design according to
• ANSI B 16.34
9 Full range of body and screen materials
9 Bolted cover
9 Flanges according to ANSI B 16.5 from 2” to 24”
9 Flanges according to ANSI B 16.47 from 26”
9 Bw ends according to ANSI B 16.25
9 Face to face according to ANSI B 16.10
9 Standard screen perforation 1.5 mm round holes
o Other perforation or wire cloth are
available on request
9 Ratio between filtering area and piping section 2:1
minimum
9 Testing according to
• API 598
• BS EN ISO 12266 PART 1
