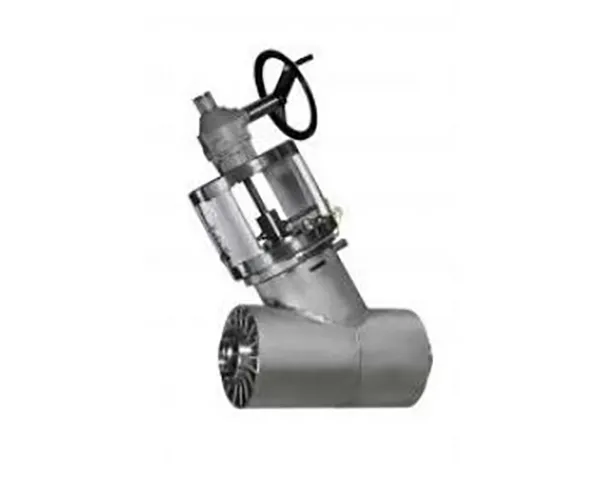

P-Globe Valve

The P-Globe has been specially designed to reduce pressure loss across an isolation valve and have a high Cv. It has the added benefit that it can be used in applications where line pigging is required.

The high Cv and low pressure drop is achieved through the body design which allows the oversized plunger to fully retract so that it does not impinge on the flow area. So the the flow is essentially equal to the full bore diameter of the pipeline. In order to allow the valve to seal in the closed position a unique sealing arrangement - T-Seal - has been used. The result is a somewhat larger valve than the line size, but one that delivers unbeatable Cv and minimal pressure loss.

FEATURES

• 1 inch to 24 inches
• ASME 150# to 900#
• Fully piggable in both directions
• Extremely low Delta P across the valve
• High Cv
• Unique T-Seal principle
