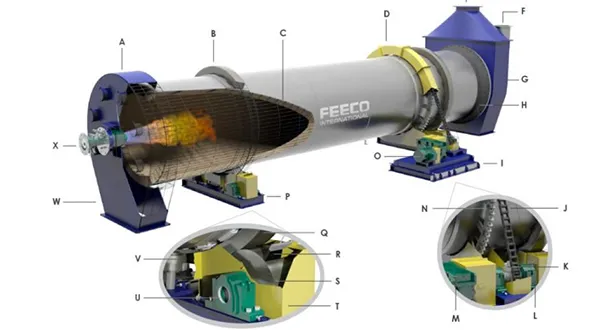

DIRECT-FIRED ROTARY KILNS

FEECO is a leading manufacturer of highly engineered, custom rotary kilns for processing solids. Our high temperature kilns have earned a reputation for their durability, efficiency, and longevity. We offer both direct- and indirect-fired units.

Rotary kilns work by processing material in a rotating drum at high temperatures for a specified retention time to cause a physical change or chemical reaction in the material being processed. The kiln is set at a slight slope to assist in moving material through the drum.

Direct-fired kilns utilize direct contact between the material and process gas to efficiently process the material. Combustion can occur in a combustion chamber to avoid direct flame radiation, or the flame can be directed down the length of the kiln.

Direct-fired kilns can be of the co-current or counter current configuration, referring to the direction the combustion gases flow in relation to the material.

FEATURES

• Size: Up to 15′ diameter x 100’+ long (Up to 4.6m dia. x 30.5m+ long)
• Capacity: 1 TPH – 50 TPH (1 MTPH – 45 MTPH); maximum capacity is dependent on process variables unique to each application
• Parallel or counter current flow
• Optimized Refractory Lining Solutions (multiple layers, castable, brick)
• Engineered shell to eliminate distortion and misalignment due to high operating temperatures
• Various Drive Assemblies Available

Optional Components

• Various Seal Options
• Machined Bases
• Screw Conveyor Feeder
• Automatic Gear Lubrication System
• Exhaust Gas Handling Equipment
• Ductwork
• Various Burner Configurations
• Components for increasing efficiency (flights, dams, bed disturbers, etc.)

Accommodates Various Fuel Types

• Fuel Oil
• Natural Gas/Propane
• Waste Heat
• Biogas

Material Options

• Carbon Steel
