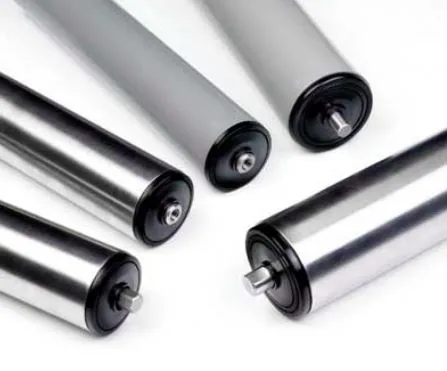

Stainless steel conveyor rollers
Stainless steel conveyor rollers
We have a wide range of stainless steel rollers to satisfy stringent demands, from handling lightweight and small packed product through to food processing areas that require frequent washing down. Options include free running rollers, sealed bearings for maximum longevity and plastic tubes where cost is an issue.
Grade 304 stainless steel is available as standard but grade 316 is also available for applications that require this.
Features and options:
Free running option for gravity roller conveyors
Sealed bearing option for wash-down areas
Wide range of tube and spindle options for all stainless steel conveyor rollers
Plastic tube options where cost is an issue
Grade 316 stainless steel tube and spindle options on all sizes
Type 100 conveyor roller
Type 100 conveyor roller
The FASTRAX Type 100 roller is ideally suited to be fitted in light duty roller conveyors. It has a very free running bearing which means that very small and lightweight products can still be conveyed easily by gravity. Taper rollers are also available to suit 500mm and 800mm inside radius.
Specification
Load rating
16kg per roller (dependent on roller length)
Bearing specification
Semi-precision - options of either mild steel or stainless steel available
Tube material options
Mild steel, self colour / zinc plated, stainless steel, PVC
Spindle material options
Mild steel, self colour / zinc plated, stainless steel
Spindle type options
Spring loaded, female threaded, male threaded, flatted, cross drilled
View Conveyor Roller Sizes View Conveyor Roller Diagrams
Type 300 conveyor roller
Type 300 conveyor roller
The FASTRAX Type 300 roller has a sealed bearing housing which significantly prolongs the life of the roller. This roller is especially suited to use in wash down applications and is ideal for use in food handling and chemical industries. In addition a true taper roller is available to suit 800mm inside radius bends.
Specification
Load rating
240kg per roller (dependent on roller length)
Bearing specification
Precision - options of steel shielded or 2RS bearings available Mild steel or stainless steel bearing options also available
Tube material options
Mild steel, self colour / zinc plated, stainless steel, PVC
Spindle material options
Mild steel, self colour / zinc plated, stainless steel
Spindle type options
Spring loaded, female threaded, male threaded, flatted, cross drilled
