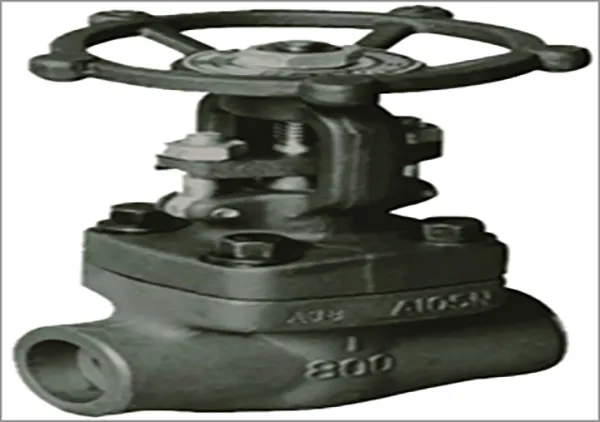

Forged Steel Gate Valves
Forged Steel Gate Valves
Falcon forged steel gate Valves are compact in design, and are available in the pressure class range of 800 to 2500 and sizes ranging from 1/4" to 2" for various applications such as hydro carbon service, hydrogen service, cryo-application, sea water de-salination projects and sour application (NACE MR-01/75).
Salient Features:
• Bolted body-bonnet design for Valves up to Class 800.
Valves with welded bonnet also available on request
• Screwed with seal-welded body-bonnet design for Valves of Class 1500
• Bellows-sealed Gate Valves available in Class 800
• Bolted body-bonnet joints provided with spiral-wound stainless steel gasket and graphite filler for maximum protection against leaks
• Die-formed graphite inner packing rings and braided graphite end rings with Inconel wire reinforcement and corrosion inhibitor
• T-head stem-disc connection of gate Valves fully meets strength requirements of API 602 and API 598
• Rolled ACME thread on stem for smooth operation
• Tapered shoulder on the stem for back seating
• Self-aligning type gland assembly with stud-and-nut tightening
• Gate Valves can be offered with electrical actuators
• Austenitic SS forging for body and bonnet of Cryogenic Valves, resulting in excellent impact strength, minimal heat loss and resistance to corrosion
• Valves can be of fered to NACE MR-0175 and other special
NACE requirements
• Valves can be supplied with IBR certification
