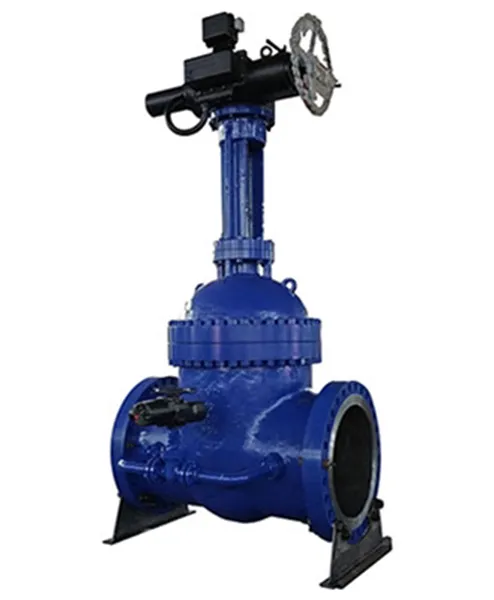

Flexible Wedge
Size Range:2" - 52" (50mm - 1300mm) (larger sizes available on request)
Body Style:Flanged
Pressure Ratings:ASME Class 150, 300, 600, 900, 1500
Shut-Off Rating:Dependant on service/application
Body Materials:Cast Steel/Stainless Steel/Cast Iron/Stainless Steel/Aluminium Bronze, Duplex
Disc Materials:Steel with 13CR. Faced/Stainless Steel/Aluminium Bronze, Duplex
Stem Materials:Stainless Steel
Seat Materials:Aluminium Bronze, Stainless Steel, Duplex
Applications:Process Industry, Petro-Chemical, Offshore (Air, Gas, Oil, Steam, Water)
