MASS FLOW MEASUREMENT FOR DRY BULK SOLIDS

MASS FLOW MEASUREMENT FOR DRY BULK SOLIDS

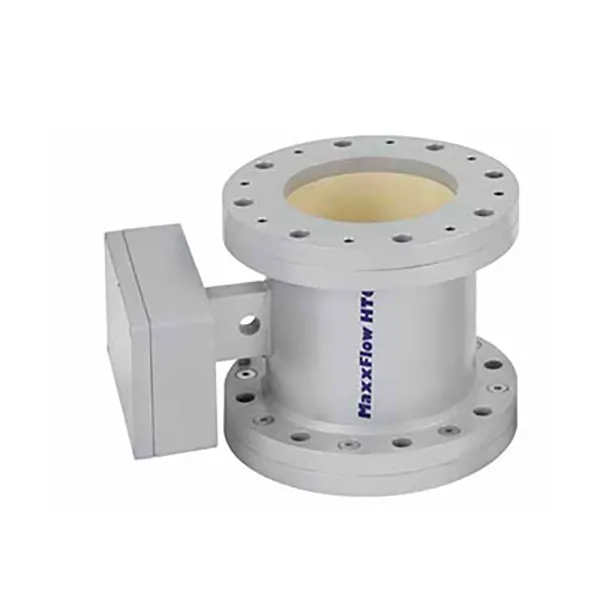

MaxxFlow HTC

Contact-less and maintenance free measurement of high mass flow rates of dry bulk solids independent of pipe run

Electromagnetic flowmeter, designed to measure bulk material flows up to 300 t/h.The meter has no mechanical parts in the flow, is 100 % dustproof and erosion free thanks to the ceramic inner pipe.

• arbitrary mounting position (inclined/free fall)
• low headroom required
• easy to calibrate

Feature and benefits

• Most non-metallic solids can be measured
• Can be installed on round pipes or ducts
• No real upper limit of mass flow
• Maximum pressure 10 bar
• Dust tight
• No flow restrictions to the process flow (wear resistant ceramic liner)
• The mass flow measurement is independent of flow characteristics
• Maximum temperature, 12O °C
• Can be installed at an angle
• Small footprint, 220 mm (DN 100), 290 mm (DN 150), 310 mm (DN 200)
• No movng parts, hence no maintenance
