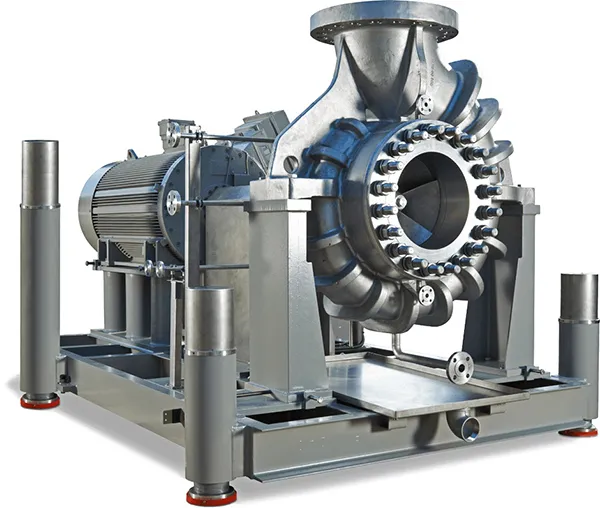

Reactor Pump HT-HPT

Reactor Pump HT-HPT

The performant reactor pump developed for high temperature and high pressure applications in the chemical and petrochemical industries. Since many years a reference to handle multiphase liquids such as chemical mixtures with high gas content. Egger HT/HPT pumps are specially designed for loop reactor continuous circulations with catalyst and high gas contents.

Applications

Multiphase liquids for loop reactor circulation
Boiling liquids with low available suction head
Abrasive and corrosive liquids
Chemicals with high system pressure and high temperature
Complex media in the chemical and petrochemical industries

Features

Pumping of fluids with gas contents up to 25 % vol.
Centerline mounted process design according to API 610 OH2

Facts & Figures

Dimensions:	DN 50 – 500 mm
	2– 20"
Flow rate:	Up to 1500 l/s,
	23800 US gpm
Differential head:	Up to 150 m, 492 ft
Pressure:	HT up to 45 bar, 650 psi
	HPT up to 100 bar, 1450 psi
Temperature:	up to 330 °C / 625 °F
Material execution:	Austenitic, Duplex, Super Duplex, High Nickel alloys,…

Advantages

Customized pump layout according to client request
Centerline mounted single stage overhung pump according to API 610 OH2
Process design enabling an easy and quick disassembly and assembly of back pull out unit and motor
Very low NPSHR values resulting in very high suction capabilities
Suitable for handling boiling liquids with low available suction head
High hydraulic efficiency
