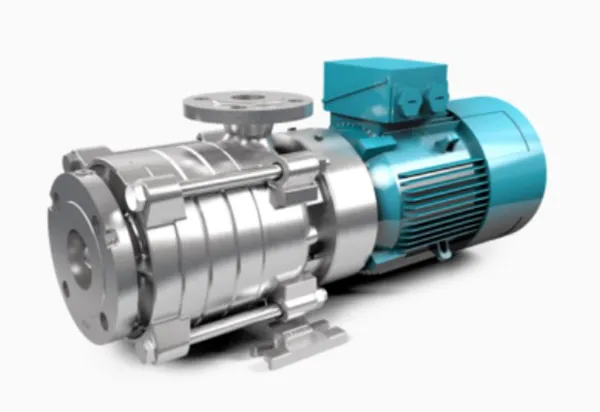

MULTIPHASE PUMPS

EDUR-multiphase pumps are used in water and wastewater technology as well as in different industrial technologies. Multiphase pumps supply liquid-gas mixtures and enrich liquids with gases, such as air, oxygen or ozone.

Functionality

The pump hydraulic differs in terms of structure and mode of operation from conventional centrifugal pumps and thus allows throttled-down operation on the suction side without cavitation arising that is critical when using standard centrifugal pumps. Gas proportions up to 30% are self-primed and safely co-supplied. In addition, dynamic mixing and an excellent gas saturation is guaranteed by those pumps.

Variants of EDUR-Multiphase Pumps

Multiphase pumps are also referred to as flotation pumps, DAF pumps or (gas) saturation pumps. EDUR-series for multiphase pumps are the PBU and LBU. They are available in a variety of construction styles and materials, such as grey cast iron, bronze or stainless steel as well as with various shaft seal systems and drive solutions. As required, we deliver customer-specific configurations. Of course, we can also provide certificates of all authorized classification societies and necessary test reports.

Advantages

Implementing EDUR-multiphase pumps eliminates the need for expensive compressor systems, pressure vessels, control units, valves and the corresponding maintenance costs. Gaseous fluids can be fed directly into the pump within the partial flow process. The special, open and axial thrust-free impeller design of these pumps guarantees this efficient process design.

As with all EDUR-pumps, multiphase pumps stand out due to their efficiency, economy and reliability. Moreover, we would like to emphasize the following product advantages as well as technical characteristics:

Innovative supply concept

Excellent gas saturation
Sucking and co-supplying of gas proportions up to 30%
Dynamic mixing
Ideal dispersion with bubble sizes between 30 and 50 μm
Excellent bubbles image (“white water”)

Cost saving potentials

Significant reduction of system components (compressor, pressure tank, elaborate control unit and various valves are omitted)
High process safety – minimum downtimes
Low investment costs
Reduced maintenance and service costs
Low running costs
Retrofit of existing systems

Technical superiority
