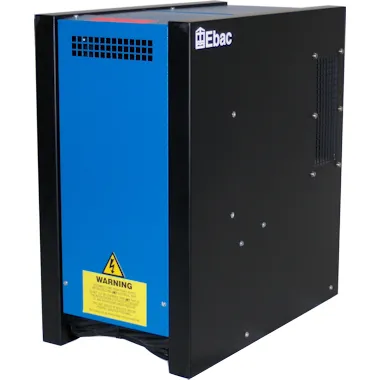

Lumber Dryers-LD800
Packaged Systems
The LD800 with the STC1 Controller is all you need to start drying wood. The STC1 controller consists of a proportional timer to control the drying cycle and a thermostat to control the heating cycle. Extra equipment such as venting units and supplementary heaters are normally not required. The drying speed is controlled at a rate which will not cause degrade, therefore humidification equipment is unnecessary. The LD800 wood dryer has been designed for the small cabinet making shop, hobbyist, or other craftsman who requires quality kiln dried wood. The system is supplied complete and ready for installation in a small self built drying chamber. No additional equipment is normally required. Your EIPL drying consultant will recommend dimensions of a suitable drying chamber that is matched exactly to your needs.
Save Money
Typically, green wood is available for significantly less than half the price of kiln dried material. Considerable savings can, therefore, be made by drying your own wood, even after an allowance has been made for modest running costs. Users of the LD800 often recover their investment within a few months of installation.
Improve Quality
Complete control over drying means complete control over quality too. An LD800 enables the user to dry down to the moisture content he needs, evenly and without degrade, throughout the whole stack.
Performance
Designed to operate up to 113˚F (45˚C). The LD800 can dry wood from green or air dried, to 6% moisture content if required. Drying times vary according to species, board thickness and starting moisture content. Your EIPL drying consultant will advise individual drying run times on a case-by-case basis. To insure the dried wood is of the highest quality, EIPL recommends a drying rate of 1% per day or less for 1” hardwood. Faster drying is attainable with operating experience.
Independence
With your own drying system you can exercise wider options when purchasing lumber, and reduce inventories. Dry what you want when you want it.
Running Costs
The LD800 is inexpensive to run, because it is installed in an insulated drying chamber. Typically it may consume just 1Kw of energy every three hours of continuous running.
Flexible
The LD800 can dry combined loads of mixed species and mixed thickness boards without degrade. This means that inventories can be minimized, saving space and reducing your capital outlay.
