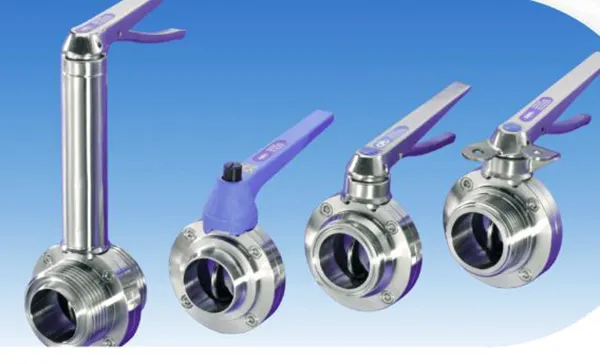

DIAMOND BUTTERFLY VALVES
The Diamond Butterfly Valve is a hygienic, in-line, 1/4 turn or multi-position unit for manual and actuated service.
Maximum Operating Pressure: 10 Bar. Working Temperature dependent on seal materials range -10°C up to 150°C. Valves can be supplied to operate outside these parameters – please enquire.
For other combinations, contact DPL.
Actuation and Control
Butterfly valves can be supplied fitted and tested with a comprehensive range of pneumatic and electric actuators including all ancilliary equipment such as solenoids, limit switches and positioners.
ATEX approved version available for use in potentially explosive atmospheres.
Group 2, Category 2, Gas and dust compliant
Fully machined from 316L forgings for a high quality, non porous construction.
Polished, crevice free disc which is easily cleaned.
‘0’ ring spindle is environmentally sealed.
Spindle bearings fit into seal cross holes resulting in low torque.
Range of seal materials available including EPDM, Silicone, Viton steam resistant and Nitrile to suit your application.
