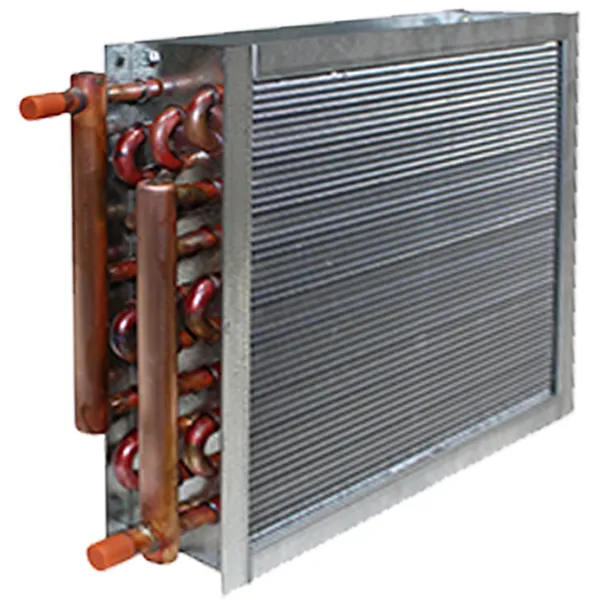

A SERIES – AQH HIGH PERFORMANCE HOT WATER DUCT COILS

A SERIES – AQH HIGH PERFORMANCE HOT WATER DUCT COILS

CSA & UL APPROVED

Our high-performance AQH models are 2 and 3 Row Hot Water Duct Coils, with Galvanized Steel 18 gauge frame, 1” flanges, sine wave Aluminum Fins, and 3/8” OD X 0.014 wall Copper Tubing. Our AQH models are designed for both horizontal & vertical installation. BTU outputs from 23,000 to 221,000 for CFM Ranges from 300 to 2,900. Max 600 PSI Operating Pressure. Max 2500 PSI Ultimate Pressure.
