DIGILUBE SYSTEMS INC

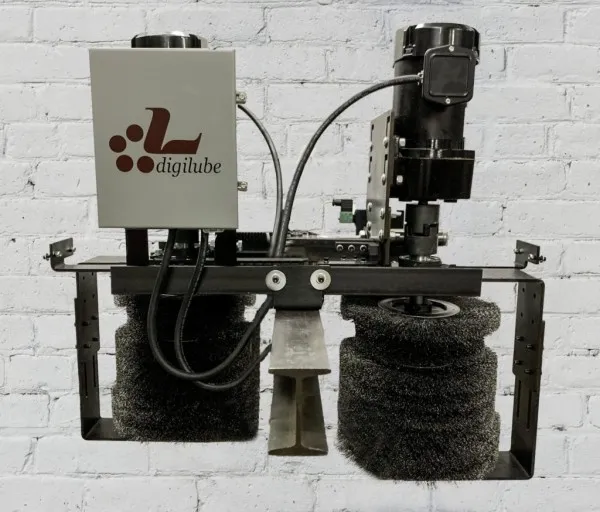

Power Chain & Trolley Cleaner

The DL-60 Monorail Power Chain & Trolley Cleaner is designed to remove and prevent the build-up of paint, dirt, scale, rust, oxidized lubricant on 2”, 3″, 4″, or 6″ Monorail I-Beam Conveyors chain, pins and trolley bearings. Twin gear motors rotate 8”-12” diameter brushes, 60 rpm’s on each side of the conveyors chain and trolleys. A programmable LED clock regulates the cleaning cycles to effectively keep that particular conveyor clean, thus eliminating product contamination. The DL-60-Unibilt Power Brush Cleaner is a modified version designed to clean Enclosed Track Conveyors.

Features

• Two standard reversing motors (each 1/3hp, 120V, 60 cycles) improves cleaning & extends brush life

• The programmable clock is easy to use; you can program in up to 8 complete cleaning cycles per day, however most systems can be kept clean with a single cleaning once a week or less

• Rugged-duty system is easy to install

• Heavy-duty bearings are self-aligning, shielded and sealed for maximum service life

• The rubber curtain design contains and directs debris into the collection pan

• DIMENSIONS: 35 1/2″ x 22″ x 30″ (height can vary)
