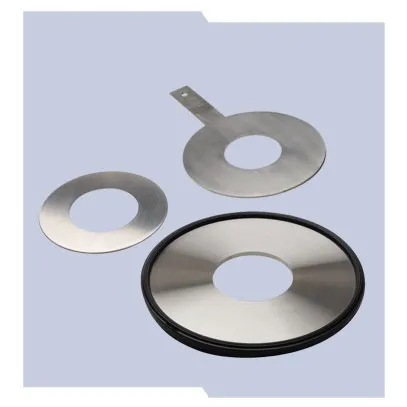

Orifice Plates and Plate Seals
EExceptional performance and superior durability are the hallmarks of Daniel™ Orifice Plates and Plate Seals. Available in a variety of line sizes and materials, these simple yet effective differential pressure measurement solutions are compatible with all Daniel ̀fittings (Senior, Junior, Simplex and Orifice Flange Unions) and continue to be one of the most widely used oil and gas ́flow measurement technologies. Every Daniel plate is expertly manufactured to meet or exceed AGA 3/API 14.3 standards and a variety of plate materials and seal options, including nitrile (NBR) and PTFE, are available to ensure optimum performance in extreme conditions as well as to eliminate the possibility of gas leakage or spillage of liquids.
Specifications
Line Size
.25-in to 36-in (75 mm to 10970 mm)
Uncertainty of Discharge Coefficient
±0.5% of flow rate
Flow Turndown
10:1 or better
Max. Operating Pressure
ANSI 2500
Process Temperature Range
-20°F to +160°F (-29°C to +71°C)
Fluid Type
Liquid, gas
Process Wetted Material
316/316L Stainless Steel
Features
Note: Please refer to the Plate Datasheet for Plate Models and Seal Model selections
