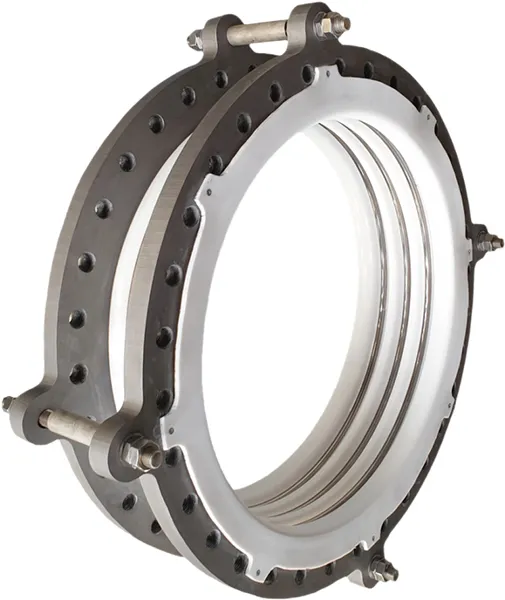

PTFE High Performance Bellows
The FluoroFlow Bellows (FFB) range has been engineered over 40 years to compensate for thermal expansion in pipelines, for the protection of fragile process equipment such as graphite, plastic or glass and the isolation of vibration hazards. PTFE bellows come into their own for corrosive, high purity or hot applications. CRP has some unique manufacturing processes based upon the use of paste extruded PTFE, and a proprietary convolution process to secure a uniform wall thickness and highest pressure-temperature ratings in the market. These have been independently tested by the internationally recognised safety and quality group TÜV-Germany undertaking innovative long term (one year) internal pressure creep testing.
The Teflon® expansion joints range covers 22 sizes from DN25/1” to DN1050/42”. They are available with flanges according to ASME, DIN and JIS standard, as well as with individual special dimensions. CRP manufactures these bellows in both virgin and static dissipating PTFE. FluoroFlow PTFE compensators in sizes DN25 / 1”NB up to DN250 / 10”NB are available in extra heavy duty only. For larger diameters there is a choice of two wall thicknesses—a heavy duty (HD) and extra heavy duty (XHD). The bellows can be manufactured with 2 to 10 convolutions depending upon the size. We are able to produce custom bellows with flanges of differing nominal bores, lateral only movements etc .
We offer quick leadtimes for the smaller sizes carrying some finished stock and component parts for others. Flanges can be supplied in carbon steel or stainless steel, ASME 150 and DIN PN10 / 16 being most common.
