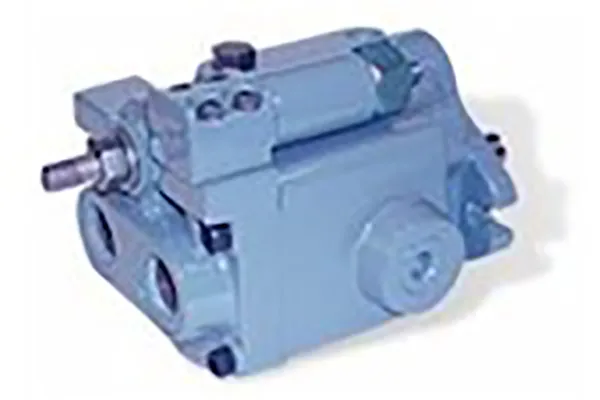

HPV Series Axial Piston Pumps
HPV Series Axial Piston Pumps
With our variable volume axial piston pumps the input horsepower closely matches output horsepower in these highly efficient pumps. They are designed to closely match the Eaton-Vickers® PVB and PVQ and the Parker-Denison PV series of pumps in physical size and port location for ease of interchange and replacement.
Quiet Operation
Combining new technology, strict engineering disciplines and efficiently designed porting has reduced noise to very low levels.
Simple Construction
For a long and productive life.
Application Flexabilty
Four pump controls, Tandem pump options for multiple pump applications; high speed operation for mobile applications, maximum volume control is standard for application versatility.
Rugged Construction
Heavy duty cylinder block and body castings provide long life and reduced noise, hardened swash plate for extended trunnion life.
Compact Size
Designed to maximize the use of valuable space.
Maximum Volume Adjustment
Allows you to set the pump displacement to match the maximum system flow requirements and prevents overloading of the system.
Designed to be Rebuildable
Great care was taken in the design of this pump to ensure that when it is in need of service, it can be disassembled and brought back into service with replaceable port and wear plates, simplifying maintenance.
Control Options
Standard Pressure Compensated
Delivers only the flow required by the system, while maintaining the set pressure. This will save horsepower and unnecessary wear on the system.
Pressure compensation ranges from 200 to 3500 PSI continuous duty and up to 4000 PSI intermittently.
Remote Pressure Control: Model Code 7
Includes all the features of the standard pressure compensator with the added feature of remote control. This option allows you to adjust or vent the pump control from a remote location for multiple pressure operations.
Load Sensing Control: Model Code 19
Provides constant flow through a given orifice and pressure that varies with the load requirements. This control maximizes efficiency and minimizes heat generation.
Horsepower Limiting Control: Model Code 26
This control is highly recommended where high pressures - low flows, and high flows - low pressures are needed.
