ChemValve

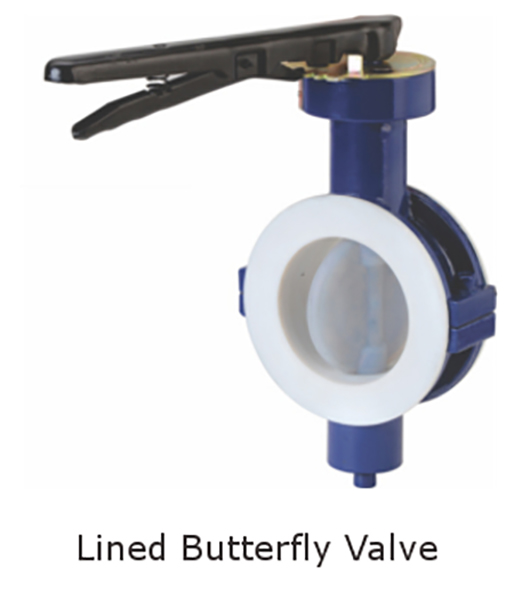

Model 190-150 Lined Butterfly Valve

Model 190-150 Lined Butterfly Valve

The ChemValve Model 190-150 is a PFA lined butterfly valve suitable for many applications where flow control of corrosive and aggressive chemical liquids or vapors is required. It is available in sizes from 2” – 24”, including select models with enhanced features for chlorine and brine service.

Gear-Operated Lined Butterfly Valve

Wafer or Lugged Type

Sizes: 6” 8" 10” 12” 14” 16” 18” 20" 24"

Chlorine and Brine Service Configurations

Available in Lever-Operated 4” or Gear-Operated 6” and 8” Lugged Types

Enhanced Features:

Thicker TFM seats for reduced permeation

Elastomer-backed seat pad (Viton) for improved shut-off life

PVDF disc encapsulation for improved permeation, corrosion, and erosion resistance

One piece Duplex 2205 Stainless steel disc and stem for long service life

Sealed bottom hub to reduce risk of unsafe leaks
