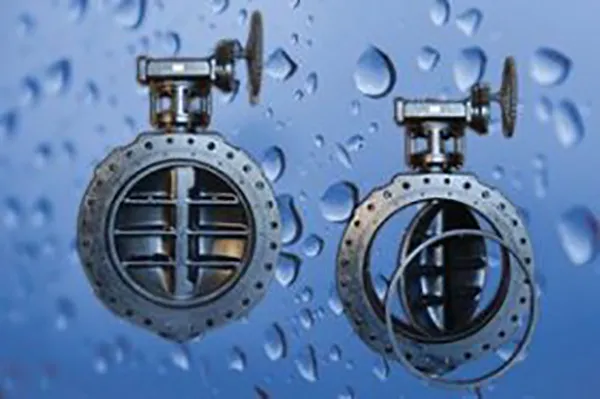

Large AWWA

General:

AWWA C504 (14” – 72”) (350mm – 1800mm)

AWWA C516 (78” – 104”) (2000mm – 2600mm)

Sizes: 14” – 104” (350mm – 2600mm)

Temperature range: -20℃– 120℃ (-4℉– 248℉)

Pressure rating: AWWA Pressure Classes 25B,75B& 150B

Feature:

• The Value Valve VF-264 valve features a unique Double Offset design similar to HPBFV resulting in much greater seat life
• The VF-264 offers Industrial / Municipal grade components for most demanding applications
• The High Performance Seat Design has a removable seat held by a seat retainer ring easily removed by removing a few ret ring bolts
• VF264 sizes 30” and up features seat ring that may be replaced without removing the valve from pipeline.
• Optional Rubber lining available including spark testing for holidays
• Bi-direction bubble-tight shut off.

Specifications:

• Body style: Flange Type
• Body shell thickness: AWWA C504, C516
• Mounting: ISO5211
• Design & Pressure： AWWA C504, C516
• Face to Face： AWWA C504, C516
• Inspection and Testing: AWWA C504, C516
• Standard Marketing System: MSS-SP-25
