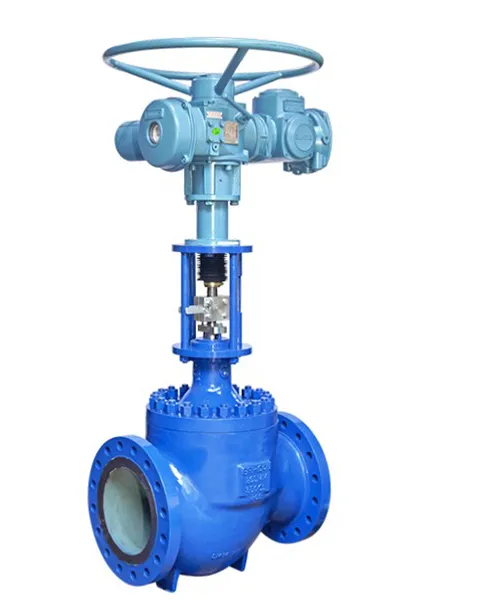

Motorized Control Valve

Product description:

Globe type, Top & Bottom and Skirt guided, Single / Double seated, Motorized Operated, Two-way & Three-way (Mixing & Diverting type) Control Valve.

Features:

• Globe type, Top & Bottom and Skirt guided, Single / Double seated, Motorized Operated, Two-way & Three-way (Mixing & Diverting type) Control Valve.
• One medium enters the valve body above the upper seat ring, the second below the
• lower seat ring. Percentage of each medium is controlled by varying the position of the inner valve. As the inner valve approaches a seat ring the flowing area is reduced. Mixed media flows out of the valve through a common port
• It is also used as diverting [ by passed ] the excess flow of thermic fluid, Steam, Cooling water etc.

Application:

This model can be used in throttling or on-off services to control air water, steam, gas, oil, thermic fluid and other fluids in processes having wide flow range requirement.

Ordering / Sizing Information:

• Fluid/State
• Flow Rate
• Inlet Pressure
• Outlet Pressure
• Operating Temperature
• End Connection
• Fail Position
